CNC Bending

CNC BENDING

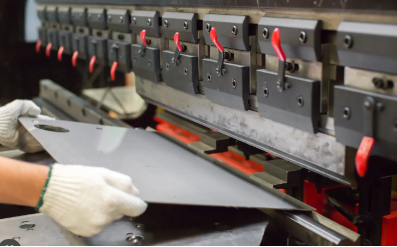

Air Bending process involes to perform the desired sheet metal bending profile as per the customer required precise tolerance

Standard and customized bending tools and dies where used to achieve perfect bending angles and bending radius

Machine Capability
Working Length : 3 meter
Position Accuracy : ± 0.05 mm
Tonnage : 170 Ton
Bend Thickness : Max. 12 mm

Process Capability (Tolerance Range):

Bend to Bend  - ± 0.2mm

Bend to Edge  - ± 0.1mm

Bend  to Hole - ± 0.2mm
