Frame Weldment

Code: 000777

Frame Weldment
Frame Weldment
Frame Weldment
Frame Weldment
Frame Weldment

Send Inquiry

Just submit your details and we'll be in touch shortly.

Type the characters shown above.

Description

Frame Weldment

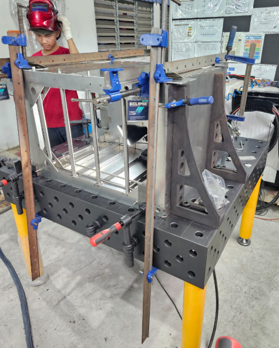

Enhanced the product development on critical stainless steel (304L) frame weldment  using 3D weld table with jigs and fixture

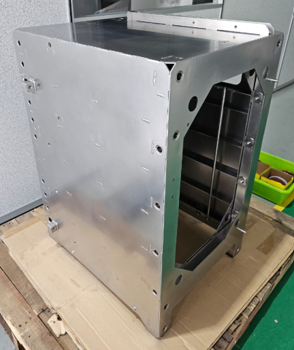

•Frame Weldment Size: 898mm L x 634mm H x 547mm W
Combi of sheet metal with Machining components

Combi of Weldment & Post Machining

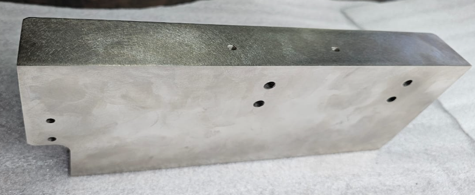

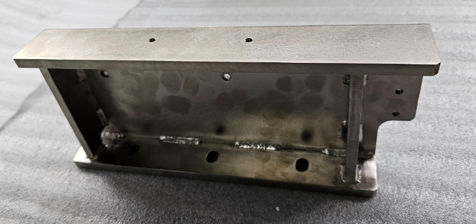

•Frame Weldment Size: 230mm L x 120mm H x 64mm W
  • Combi of 10mm plate weldment with post Machining process
  • Critical dimensional of flatness 0.05mm and Parallelism, Perpendicularity 0.05mm
  • Class B cosmetic requirement
  • Mild steel weldment control on distortions using Jigs & fixture
  • Critical dimensional positional tolerance is 1mm from datum A / B / C linear ±0.35mm
  • Class B cosmetic requirement
  • Stainless steel weldment control on distortions using Jigs & fixture
