Frame Weldment

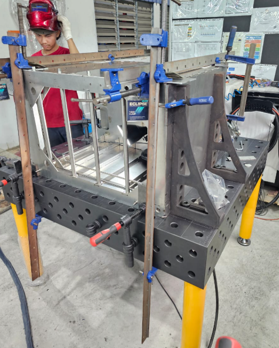

Enhanced the product development on critical stainless steel (304L) frame weldment using 3D weld table with jigs and fixture
•Frame Weldment Size: 898mm L x 634mm H x 547mm W
•Combi of sheet metal with Machining components
•Critical dimensional positional tolerance is 1mm from datum A / B / C linear ±0.35mm
•Class B cosmetic requirement
•Stainless steel weldment control on distortions using Jigs & fixture
