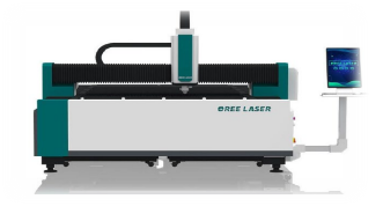

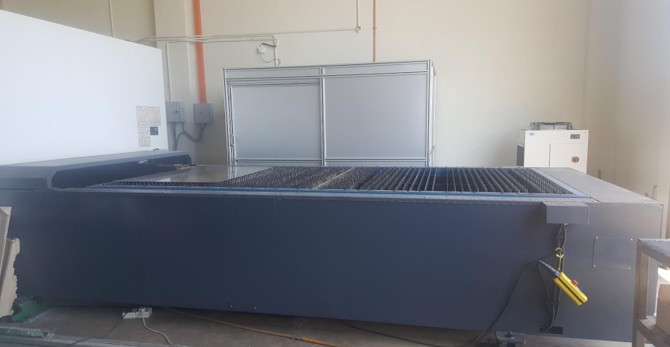

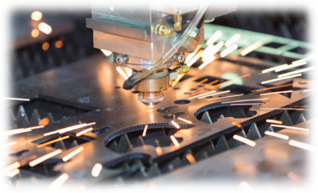

Metal Laser Cutting
- Fiber laser cutting tools and machinery involve to cut several profile of different unique material (CRS, HRS, aluminum, Stainless Steels, & Copper) with precise tolerance cutting edges
- Machine Capability:
# Laser Power : 1500 Watts
# Working Sheet Size : 5ft x 10ft
# Cutting Speed : 0.8 m/min
# Positional Accuracy : 0.03mm
# Thickness Range : Mild Steel - Max. 12mm thk
Stainless Steel - Max. 6mm thk
Aluminum - Max. 4mm thk
Process Capability (Tolerance Range):
Cutting edge to Cutting edge - ± 0.1mm
Hole Size - ± 0.05mm
